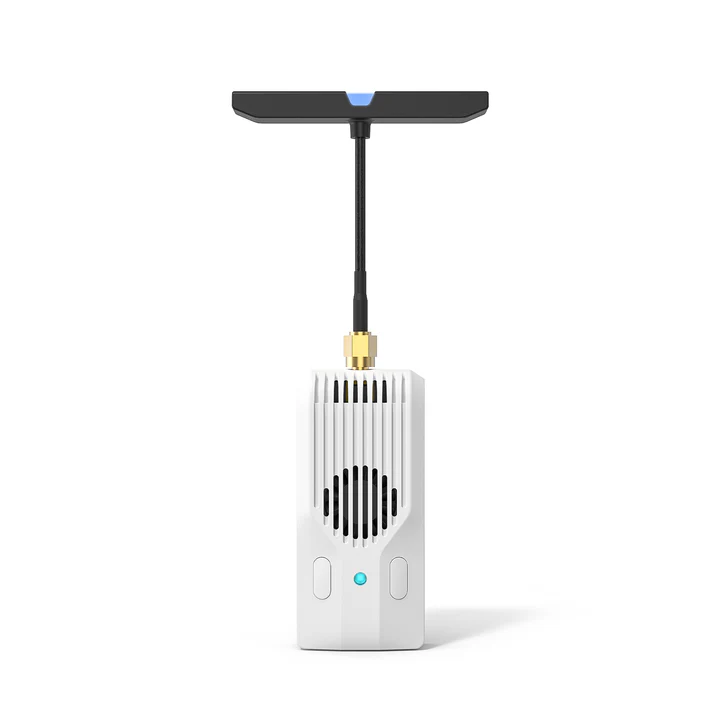

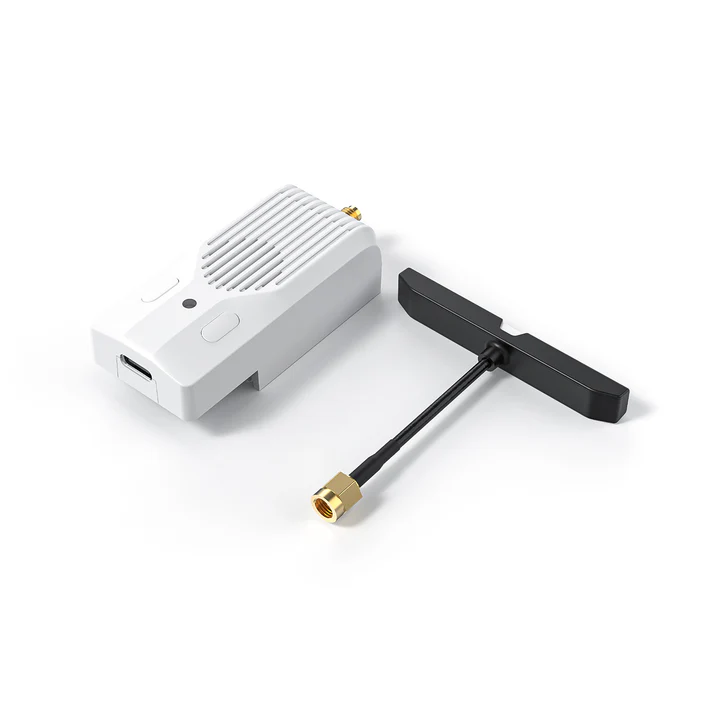

ELRS Nano TX V2 Modulis (ELRS 2.4G)

SKU: 01070010_1 |

Manufacturer: BetaFPV

Ir atlikumā

Specifikācija:

Item: BETAFPV Nano TX V2 Module | ELRS 2.4GHz/915MHz/868MHz
Weight: 28g
Color: White

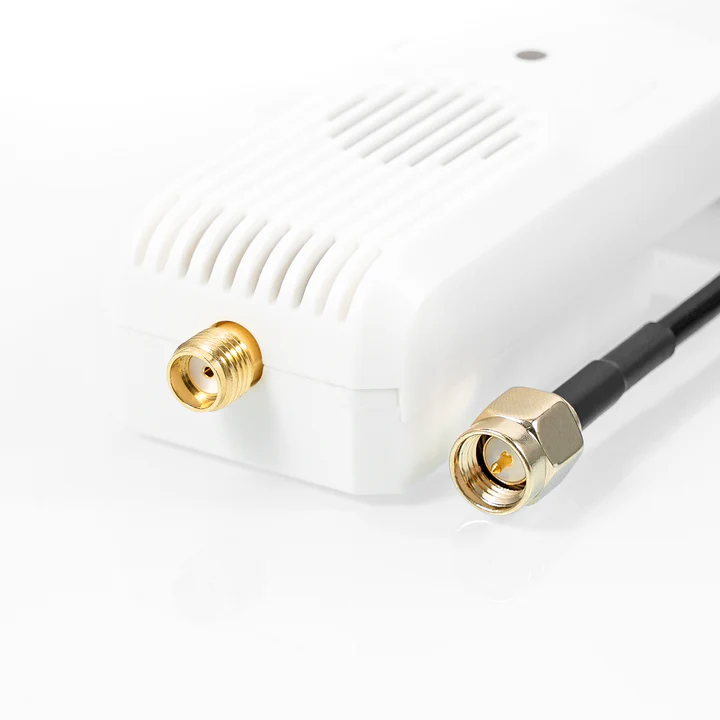

Antenna Connector: RP-SMA(2.4GHz), SMA(915/868MHz)
RF Power(2.4GHz): 25mW/50mW/100mW/250mW/500mW/1000mW
RF Power(915/868MHz): 10mW/25mW/50mW/100mW/250mW/500mW/1000mW/2000mW
Packet Rate(2.4GHz): 50Hz/100Hz/150Hz/250Hz/333Hz/500Hz/D250/D500/F500/F1000
Packet Rate(915/868MHz): 25Hz/50Hz/100Hz/100Hz Full/200Hz/D50
Frequency Band: 2.4GHz ISM, 915MHz FCC, 868MHz EU
Backpack: Support
Input Voltage: 7V~13V DC
Power Consumption(2.4GHz): 8V,1000mA@1000mW, 150Hz，1:128
Power Consumption(915/868MHz): 8V,1000mA@1000mW, 50Hz，1:128
USB Port: Type-C
Fan Voltage: 5V
Default Firmware Version: ExpressLRS V3.3.0

Monthly payment from €8.33 / 6 months

2 in stock

€49

€49

Mēneša maksājums sākot no 4.9 €

Daudzums

Pircējam ir tiesības atgriezt vai apmainīt preci 14 dienu laikā.
Ātra piegāde krājumos esošām precēm.
DJI precēm pieejama papildus apdrošināšana DJI Care

Piegāde

Piegādes veidu varat izvēlēties iepirkumu grozā.

Pakomāts

1-2 darba dienas
Kurjers

1-2 darba dienas

Description
Description

Features
- The First ever T-LED antenna with built-in LED display functionality, allowing pilots to effortlessly monitor the signal transmitting and receiving while using the radio transmitter.
- It offers 3 versions: 2.4GHz with a maximum output power of 1W, and 915/868MHz with a maximum output power of 2W. The max packet rate is F1000/200Hz.
- Featuring an integrated TCXO, it minimizes frequency deviation for stable performance, eliminating signal interference.
- With its optimized internal airflow channel and a heat sink, a high-speed 1804 cooling fan, it effectively dissipates heat even during high power output, ensuring stable link performance.
- Support backpack and custom button functions based on ELRS V3.3, empowering pilots to connect external devices and set buttons according to personal usage habits.
Pieprasījums
Vārds

E-pasts

Temats

Jūsu ziņojums

Description

Features

The First ever T-LED antenna with built-in LED display functionality, allowing pilots to effortlessly monitor the signal transmitting and receiving while using the radio transmitter.
It offers 3 versions: 2.4GHz with a maximum output power of 1W, and 915/868MHz with a maximum output power of 2W. The max packet rate is F1000/200Hz.
Featuring an integrated TCXO, it minimizes frequency deviation for stable performance, eliminating signal interference.
With its optimized internal airflow channel and a heat sink, a high-speed 1804 cooling fan, it effectively dissipates heat even during high power output, ensuring stable link performance.
Support backpack and custom button functions based on ELRS V3.3, empowering pilots to connect external devices and set buttons according to personal usage habits.
